Dosing & Handling

Bulk goods are often filled into bags or big bags. Segler offers a solution for this: dosing screws for filling big bags. Segler dosing screws are used in a variety of ways in process engineering as dosing and shut-off units.

To empty bagged goods, Segler manufactures bag chutes with, for example, suction, filters or support tables. BigBags are planned and manufactured with individual handling systems and crane systems. The following options are possible on customer request: pneumatic docking station, filling head, BigBag traverse, vibrator, automatic discharge aids, combination with bag feed and integrated conveyor screw. Gate valves, product diverters and chutes are manufactured in many sizes and according to customer requirements.

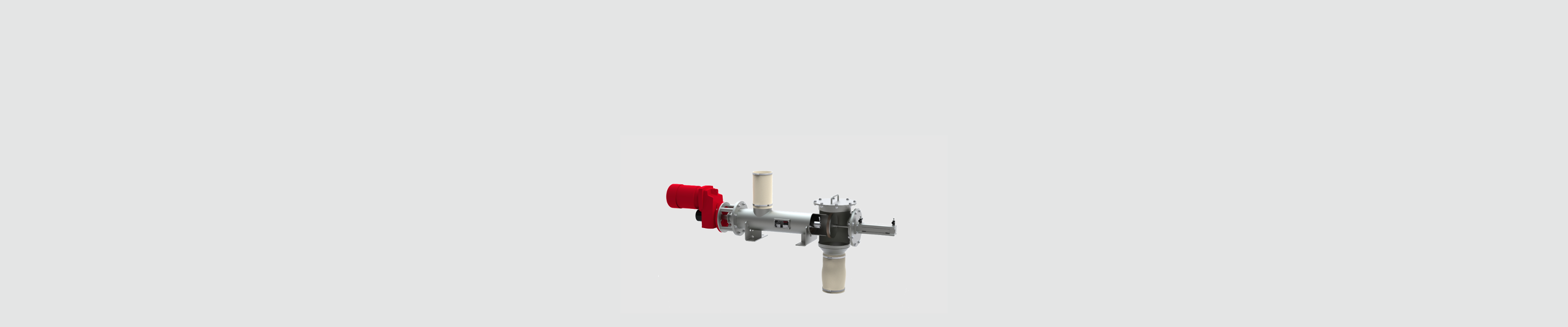

dosing screws

dosing screws

The highest demands on the quality and reproducibility of products require precise and precisely timed production processes.

Only small tolerances are permitted, which requires precision work in terms of design and production for media with difficult properties such as grain size, flow behavior, consistency, bulk density. When raw materials, additives, etc. are fed into the processing process or products from the process are to be filled into containers such as sacks, containers, etc., a variety of challenges must be solved. Examples of this include media that has clumped together due to storage, dust development, ensuring exact/calibrated quantities, etc.

Reference projects:
Dosing screw conveyor with buffer tank and agitator
double screw conveyor with bunker
dosing screw for magnetite ore melt

Product range:

  • dosing screws
  • dry matter dosing device, volumetric, gravimetric

Properties / Variations:

  • services
    From 10l/h to 500m³/h
  • equipment
    Product-adapted
    Tools such as single-shaft, multi-shaft screws; inlet funnels, level indicators, agitators, sieves, vibration motors, quick-closing slides, filters, sieving devices, dust extraction, load cells
  • designs
    Stationary or mobile, dust-tight, gas-tight, pressure-tight or pressure-shock-resistant, food-safe, ATEX-compliant
  • seals
    Product-specific seals

Advantages:

  • Precise dosing and handling of even the most difficult substances
  • Flexible system configuration
  • Variable adjustment of services
  • Also for dosing and handling multiple components
  • easy cleaning
sack pouring

sack pouring

The highest demands on the quality and reproducibility of products require precise and precisely timed production processes.

Only small tolerances are permitted, which requires precision work in terms of design and production for media with difficult properties such as grain size, flow behavior, consistency, bulk density. When raw materials, additives, etc. are fed into the processing process or products from the process are to be filled into containers such as sacks, containers, etc., a variety of challenges must be solved. Examples of this include media that has clumped together due to storage, dust development, ensuring exact/calibrated quantities, etc.



Product range:

  • funnel with bag support
  • Enclosed bag emptying
  • extraction with filter system
  • discharge and dosing screws

Properties / Variations:

  • equipment
    Sieve, filter, agitator, product-adapted tools such as single-shaft, multi-shaft screws, inlet hopper with bag support, level indicator, vibration motor, sieve equipment, magnetic separator, dust extraction, housing with dust-tight flaps
  • designs
    Stationary or mobile; dust-tight, gas-tight, food-safe, ATEX-compliant
  • seals
    Product-specific seals

Advantages:

  • Precise dosing and handling of even the most difficult substances
  • Flexible system configuration
  • Variable adjustment of services
  • Also for dosing and handling multiple components
  • easy cleaning
  • Variable sizes of the feed hopper
big bag systems

big bag systems

The highest demands on the quality and reproducibility of products require precise and precisely timed production processes.

Only small tolerances are permitted, which requires precision work in terms of design and production for media with difficult properties such as grain size, flow behavior, consistency, bulk density. When raw materials, additives, etc. are fed into the processing process or products from the process are to be filled into containers such as sacks, containers, etc., a variety of challenges must be solved. Examples of this include media that has clumped together due to storage, dust development, ensuring exact/calibrated quantities, etc.

Reference projects:
Big Bag Emptying Station 1
Big Bag Emptying Station 2

Product range:

  • Big Bag systems
  • Big Bag emptying station
  • Big Bag filling station
  • Combined bag & big bag emptying stations
  • discharge and dosing screws

Properties / Variations:

  • equipment
    Product-adapted tools such as single-shaft, multi-shaft screws, inlet hoppers, level indicators, loosening agitators, vibration motors, filters, screening devices, magnetic pushers, compaction devices, dust extraction, crane frames, electric chain hoists, load lifting cross, big bag docking station
  • designs
    Stationary or mobile; manual or automatic; dust-tight, gas-tight, pressure-tight or pressure-shock-resistant, food-safe, ATEX-compliant
  • seals
    Product-specific seals

Advantages:

  • Flexible system configuration (sack & big bag sizes according to customer requirements)
  • Variable adjustment of services
  • Also for dosing and handling multiple components
  • easy cleaning
slides, chutes, switches

slides, chutes, switches

The highest demands on the quality and reproducibility of products require precise and precisely timed production processes.

Only small tolerances are permitted, which requires precision work in terms of design and production for media with difficult properties such as grain size, flow behavior, consistency, bulk density. When raw materials, additives, etc. are fed into the processing process or products from the process are to be filled into containers such as sacks, containers, etc., a variety of challenges must be solved. Examples of this include media that has clumped together due to storage, dust development, ensuring exact/calibrated quantities, etc.



Product range:

  • flat slide valve
  • Schurren
  • 2-way switches

Properties / Variations:

  • applications
    For free-flowing or pourable bulk materials
  • equipment
    Non-stick coating, liner, lining,
    Manual, electric or pneumatic operation
    made of mild steel or stainless steel
  • designs
    Dust-tight, gas-tight, pressure-tight or pressure-shock-resistant, food-safe, ATEX-compliant
  • seals
    Product-specific seals

Precise dosing and handling for maximum efficiency

From dosing screws to big bag systems – we offer individual solutions for precise and gentle product handling, even with demanding materials. Contact us and optimize your processes with tailor-made systems!
